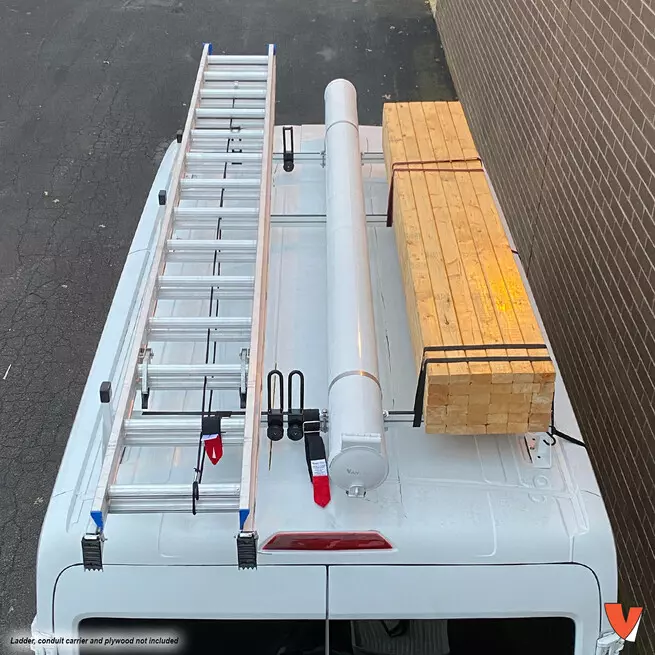

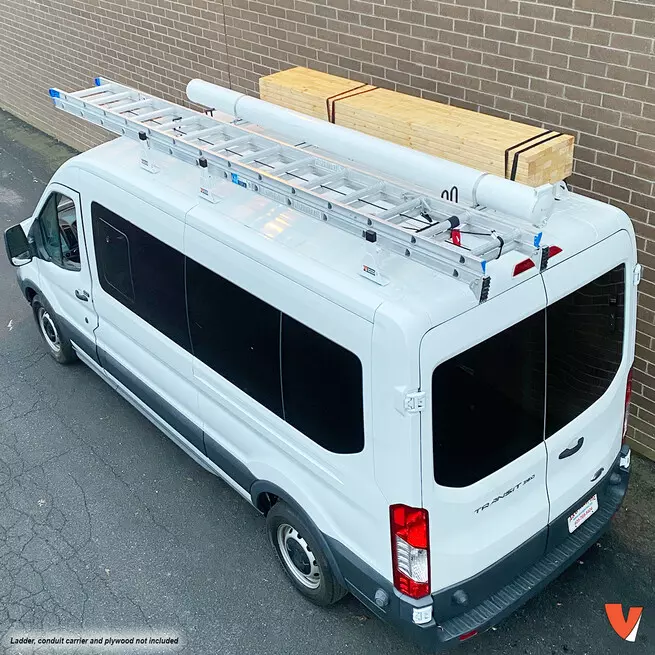

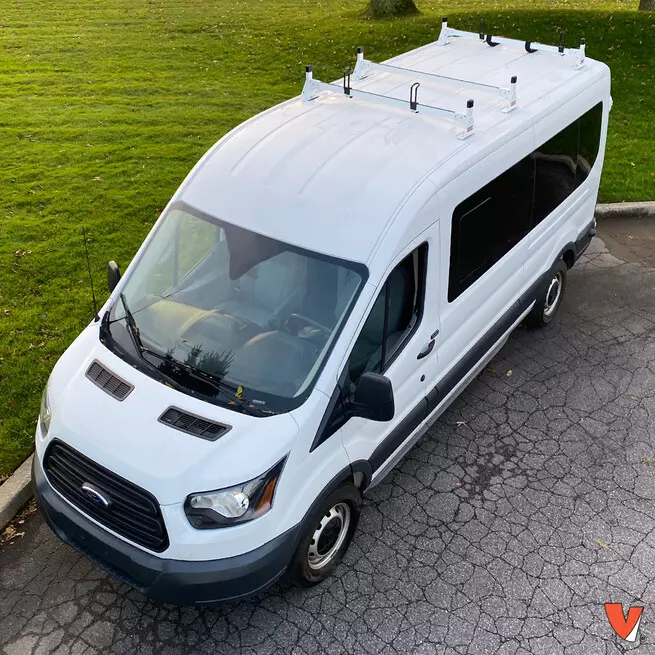

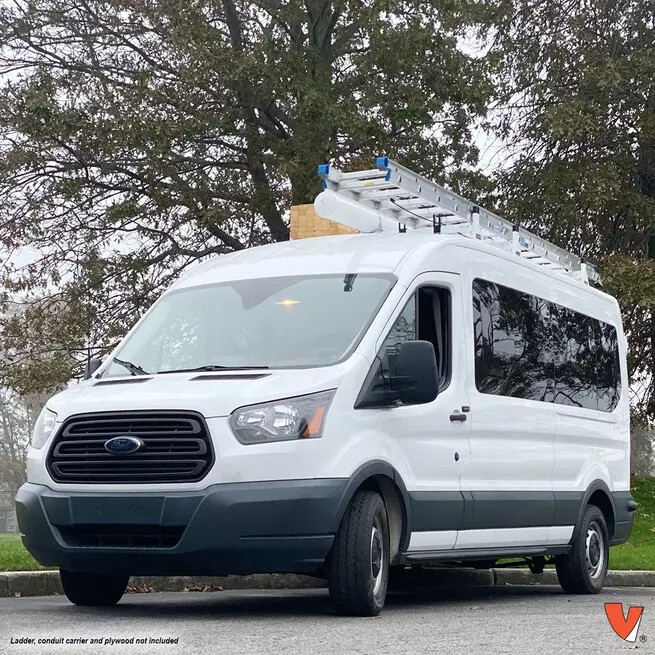

The Vantech H1 aluminum rack system is a durable and affordable ladder rack.
The Vantech H1 steel system uses 2″ X 1″ rectangular bars. The Crossbar is protected by a bar guard layer on top of the crossbars. The Mounting uprights base has an extra wide 8″ X 2″ wide base at 10.5″ total height.
Have a question about Vantech H1 Utility Rack? Click the blue button above.

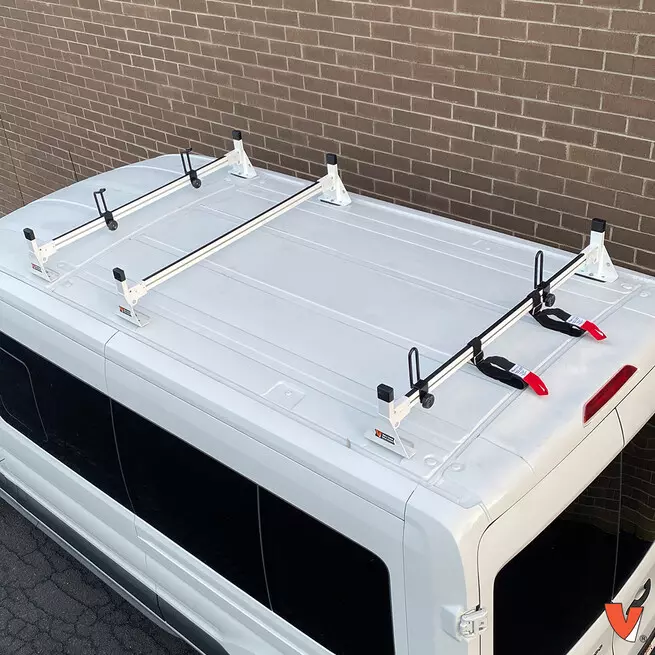

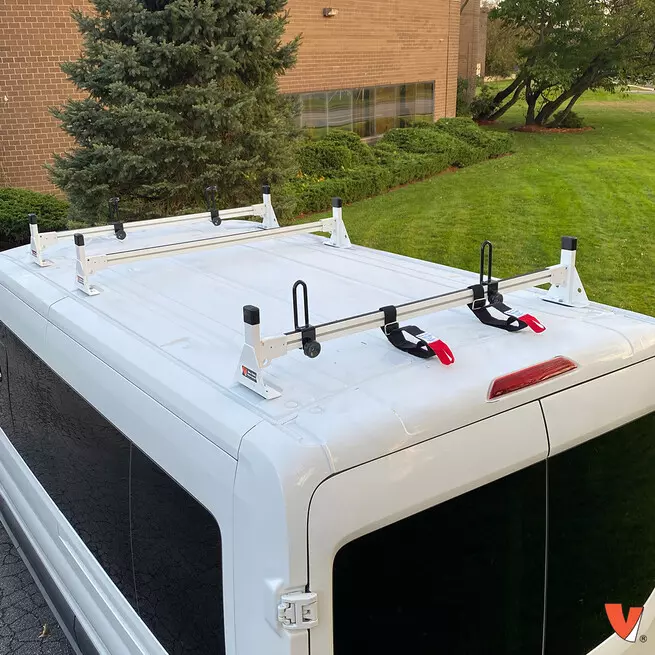

The Vantech H1 aluminum 3 Bar System can hold up to 750 lbs. (evenly distributed). The Crossbars are 2″ X 1″ Reinforced extruded aluminum crossbars with internal structural support. The Crossbar is protected by a rubber bar guard on top. Mounting upright are 3mm thick at the base and anodized.

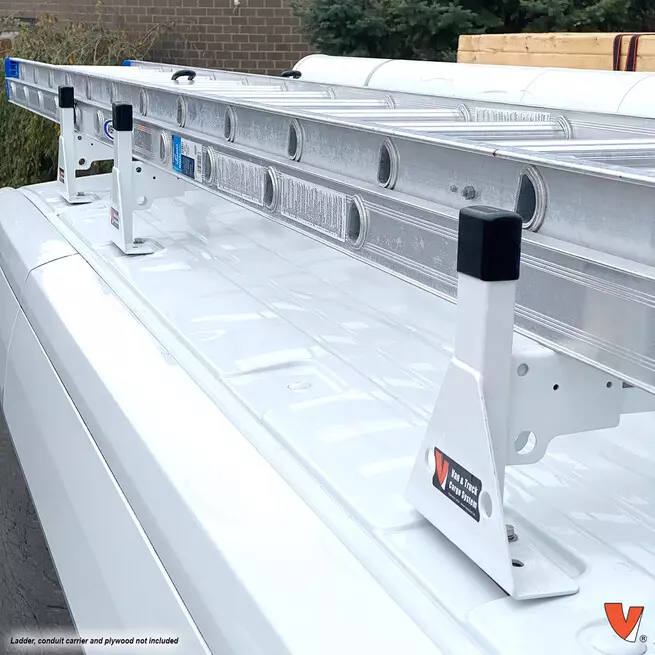

The Mounting uprights are 8″ extra wide base at 10.5″ total height. The Base is welded completely onto an upright post for a complete seal. There are 4X 3/4″ eyehooks per mounting upright. No drilling is required. The rubber cap on the upright post prevents wind noise and water leakage. The system includes a 5″ ladder stopper to prevent the ladder from sliding forward, Ladder stoppers are galvanized and rubber dipped.

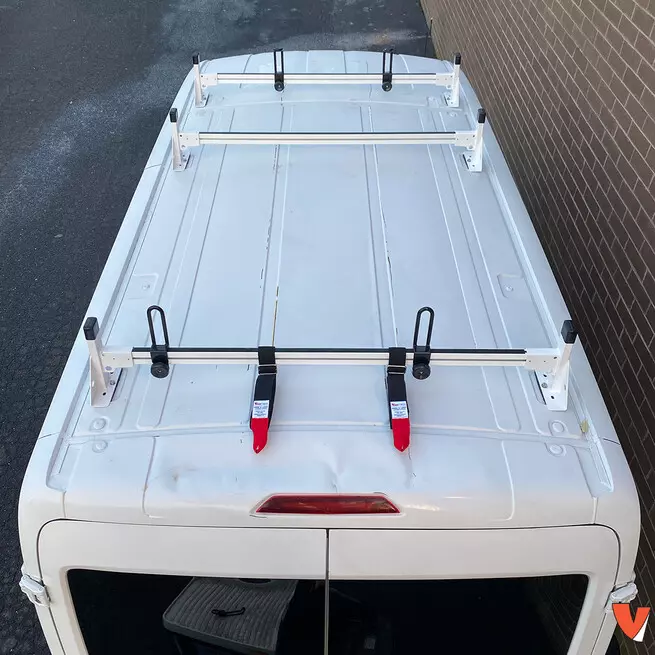

The system also includes a 5.5″ ladder guide for easy bungee and tie-down. Ladder guides are galvanized and rubber-dipped. Easy turn knob allows quick adjustments and removal of ladder stopper and ladder guide. Hook & loop straps secure ladders within seconds up to 75 lbs.
